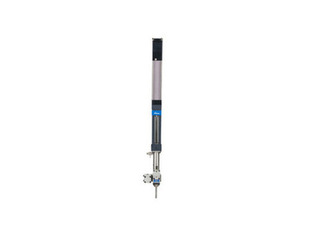

Pro-Meter A2K, a servo-driven two-component metering system and Pro-Meter D2K, a dual servo-driven two-component metering system, utilize positive rod displacement technology for dispensing high volumes of material with precision ratio and volumetric output control.

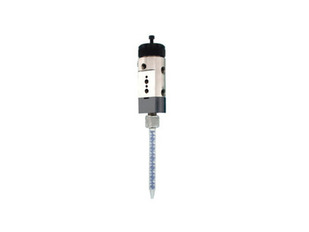

Micro-Meter 1K, a highly repeatable one-component metering system, is powered by positive rod displacement technology to dispense small volumes of material with precision ratio and volumetric output control.

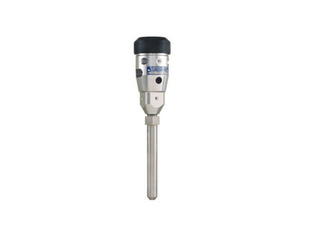

Micro-Meter A2K, a servo-driven two-component metering system and Micro-Meter D2K, a dual servo-driven two-component metering system, utilize positive rod displacement technology for dispensing small volumes of material with precision ratio and volumetric output control.

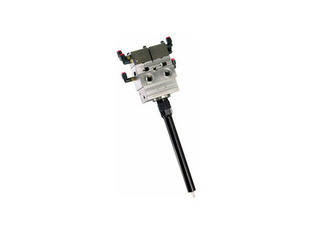

The Nordson Pro-Meter S raises the bar in the high-speed application of sealants and adhesives with innovative features that deliver invaluable time-savings and the highest quality output with repeatability and accuracy. A uniform amount of material is applied as the robot accelerates and decelerates along its programmed path via an analog input signal.

A servo motor with absolute encoder for greater precision, elevating the platform to the next level of volume accuracy and control, with faster installation, lower cycle times and increased productivity. Designed for fast, easy maintenance with a high-performance shaft coating to help withstand the abrasive materials present in today’s demanding production environments.

Designed to dispense high viscosity, ambient-temperature adhesives and sealants for a variety of manufacturing applications. Fast air motor changeover for uniform material output for rapid-cycling, dual air-piloted valve provides consistent material pressure.

Modular design, allows for flexibility to accommodate changes in application requirements. Large internal passages to Increase pump efficiency, by minimizing flow resistance and material shearing internally, more consistent material viscosity is maintained with reduced material degradation.

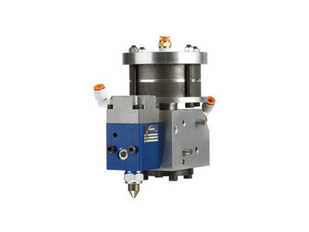

Nordson automatic on/off dispense valves provide accurate deposition and control for applications requiring sharp material cut-off, as well as uniform beads and spray patterns. These valves are designed to handle a wide range of high performance, high-viscosity adhesives and sealants, including RTV silicones, grease, mastics, plastisols, epoxies, weldable sealers, urethanes and weldable/expandable sealers.

Nordson dispense valves are available with operating pressures up to 5,000 psi, and are capable of dispensing materials with viscosities up to 3,000,000 cps. Refer to the application chart in this literature to determine which valve best meets your specific material application requirements.

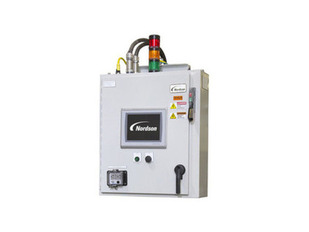

Robust PLC controls provide complete system monitoring and control of adhesive and sealant dispensing process. From bulk unloaders, to meters and dispense valves, Process Sentry displays precise, real-time graphical representations for single or dual system control. Ethernet and USB output ports for flexible data transfers.

Large touch screen interface allows for fast, user friendly operator interaction. Compact controller reduces footprint for optimal floor space utilization. System records full process data, including part IDs, actual and setpoint material dispense volumes, and fault codes.

Process Sentry™ displays precise, real-time graphical representations for single or dual-system control. Common PLC technology used throughout the industry.

Dispense monitoring and recording features, with complete system monitoring and control of your dispense system.

It is the Archimedes principle of volumetric displacement used in the metering units.

It gives Accuracy as metering proportions material to the exact volumetric ratio time and time again, flexibility with servo controlled for variable shot size, flow rate, and ratio adjustment, durability and also reliability.

Optimized for specific bead and dot dispensing, Nordson dispense nozzles provide long life with all materials while supplying visual indication to cell operators for correct use.

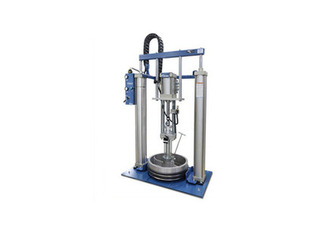

Bulk Unloader provides superior flow properties and ease-of-operation in dispensing high-viscosity adhesives and sealant materials including TIM's materials. The modular design brings flexibility to accommodate changes in application requirements. Air motors, pumps, and follower plates are interchangeable for easy system configuration.

Low waste follower plate technology prevents residual material wastes before drum changes. ScoreGuard^(R) Shaft for abrasive materials.
