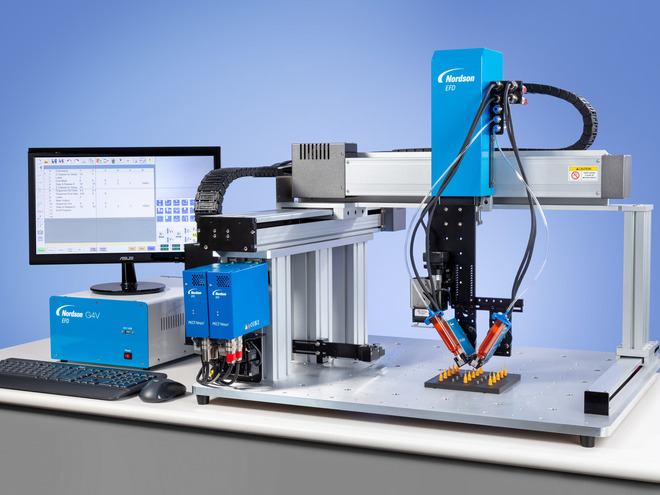

G4V PICO Nexus PICO XP P7 Cone Nozzle Tip Coating

PICO Nexμs Jetting System

The PICO? Nexμs? is a small, 24V, DIN-rail mounted jetting controller providing behind-the-scenes control of your PICO Pμlse? XP valves using Industrial Ethernet protocols to improve programming convenience and efficiency.

Request a Quote Need Help?

Find an Office

Overview

Standard jetting systems can make monitoring and adjusting dispense settings a challenge, especially in multi-valve installations. Due to the embedded human machine interface (HMI), installers often have to panel-mount standard controllers away from the point of dispense. This makes adjusting dispense settings inconvenient for the user.

That’s why we created compact, 24V, DIN-rail mounted jetting controllers engineered to connect, control, and monitor your jetting valves from an HMI of your choice at the point of dispense.

Features

Industrial Ethernet
PROFINET® (Process Field Network) and EtherNet/ IP™ communication protocols
NX protocol via TCP/IP
Intuitive web interface for easy setup, programming, and monitoring of your jet valve
DIN rail construction fits in existing machine cabinet
24V plug-and-play compatibility

Benefits

Supports plug-and-play Smart Factory integration with robust network connectivity, control, digitization, and augmentation
Control multiple jetting systems through an HMI at the point of dispense
Offers real time manufacturing information, enabling a data-driven production process
Easily program and quickly integrate the system into your manufacturing process

Unleash the Core of Connectivity with the PICO Nexμs Jetting System

Watch this video to see how the PICO Nexμs controller connects your jetting system to Industry 4.0 efficiency, saves space on your factory floor, and more.

For more videos about EFD, visit our .

Let us recommend a system that works for your application.
Equipment Recommendations

Experience Greater Efficiency, Productivity, and Flexibility

Nordson EFD’s PICO Nexμs jetting controller provides behind-the-scenes control of your PICO Pµlse XP jet dispensing valve through a PLC or other plant controller. It communicates using standard protocols such as PROFINET® and EtherNet/IP™ via Industrial Ethernet, making it easy to control your jetting systems from a human machine interface (HMI) of your choice.

.

Save Room on Your Factory Floor

The PICO Nexμs controller's small form factor and DIN rail construction allows manufacturers to mount multiple controllers into existing machine cabinets, saving valuable space on the factory floor. With no embedded touchscreen interface, operators can control these units with a PLC or other plant controller and connect it to an HMI such as a personal computer or machine monitor.

.

Intuitive Web Interface

Use the intuitive web interface to set up, program, and monitor your jet valves on site or remotely. Easily navigate the dashboard and make changes to cycle, pulse, and frequency for real-time control. A dispense log keeps track of dispensing parameters for optimal quality control.

Part Numbers

PICO Nexμs Jetting System
Part #	Description
7366000	PICO Nexμs Controller
7366525	PICO Pμlse XP jet valve
7366526	PICO Pμlse XP contact valve
